Armoured Profibus DP Cable

(Belden 3079A Equivalent+SWA+PVC Sheath)

Belden 3079A Equivalent+SWA+PVC Sheath

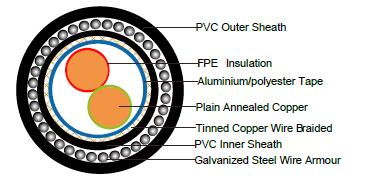

Construction:

Pair No. X Conductor Size

1PX22AWG

Conductor

Solid plain copper

Insulation

FPE

Shielding 1

Aluminium foil

Shielding 2

Tinned copper wire braid – 65% coverage

Inner Sheath

PVC, Color: Purple

Amour

Galvanised steel wire

Outer Sheath

PVC

Overall Diameter

13.6mm

Approx. Weight

304 KG/KM

Core Color

Red&Green

Outer Sheath Color

Black

Electrical Data:

Characteristic Impedance @ 3-20MHz

150 Ω ± 15Ω

Conductor Resistance

52.5 Ohm/km max.

Test Voltage

1KV

Operate Voltage

300V RMS

Mutual capacitance

27.9 pF/m



Max. Attenuation

0.2MHz

1.1dB/100m

4MHz

2.65dB/100m

16MHz

5.4dB/100m

Technical Data:

Min. Bending Radius

6 x OD mm

Operating Temp.Range, min.

-30 °C

Operating Temp.Range, max.

+75 °C

Fire Performance

flame Retardance (single vertical wire or cable test)  Iec 60332-1-2; en 60332-1-2
